Node-RED系列(十九):工业多图标面板制作

Node-RED系列文章目前已经写了18篇,介绍了Node-RED的安装以及默认安装的一些基本节点的使用,作为物联网的一个可视化拖动的流程,Node-RED的确实很容易上手。还没开始学习的同学可以先看下我以前的文章。

这是我的第19篇Node-RED系列的文章,这一篇文章我们来说一下,如何制作一个工业物联网的仪表盘的。

效果图

首先来看一下效果图,
在这里插入图片描述

改仪表盘,使用多个数据源,并通过一些function节点,将数据封装处理后,输入到折线图,柱状图,饼图,以及雷达图上。
该方案可以在一个页面,制作多组数据图表。方便用户筛选,查看。

实现方案

  • 安装dashboard节点 用于tab,group布局,chart节点用于承载图表
  • 安装random节点,用于生成随机数

用到的图表有这几个

  • line chart 折线图
  • bar chart 柱状图
  • bar chart (H) 横向柱状图
  • pie chart 饼图
  • polar area chart 极地坐标图
  • radar chart 雷达图
    在这里插入图片描述

使用注入节点来配置数据,如label, data,
使用function 节点来处理数据

var m={};
m.labels = ["January", "February", "March", "April", "May", "June", "July"];
m.series = ['Series A', 'Series B', 'Series C'];
m.data = [
    [65, 59, 80, 81, 56, 55, 40],
    [28, 48, 40, 19, 86, 27, 90],
    [38, 28, 20, 49, 45, 60, 20]
  ];
return {payload:[m]};

折线图配置

在这里插入图片描述

柱状图配置

在这里插入图片描述

横向柱状图配置

在这里插入图片描述

饼图配置

在这里插入图片描述

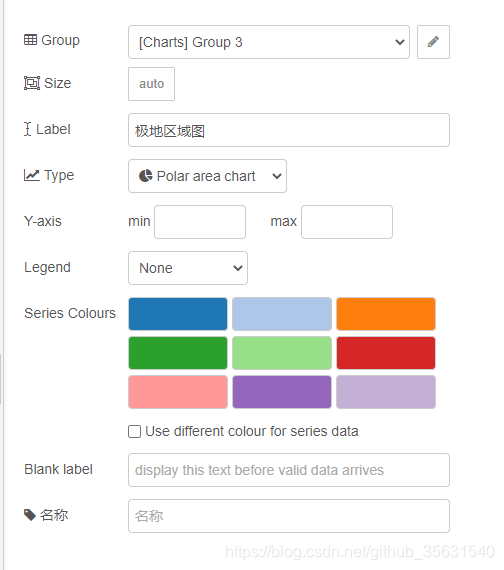

极地坐标图在这里插入图片描述

雷达图

在这里插入图片描述

分析数据流转

一源对多表1的示例来讲解一下数据的流转
该图显示如下,
在这里插入图片描述

一共是四个图,四个图使用同一份数据源
在这里插入图片描述
数据源使用function节点来生成,内容如下

var m={};
m.labels = ["January", "February", "March", "April", "May", "June", "July"];
m.series = ['Series A', 'Series B', 'Series C'];
m.data = [
    [65, 59, 80, 81, 56, 55, 40],
    [28, 48, 40, 19, 86, 27, 90],
    [38, 28, 20, 49, 45, 60, 20]
  ];
return {payload:[m]};

可以简单理解为这样。 一共有三个维度。

  • labels 对应的是x轴的值
  • data 中的数据 对应的是y轴的值
  • series 对应的是系列,分类

如 一源对多表5的数据如下

var m={
    "series":["X","Y","Z"],
    "data":[[5,6,9],[3,8,5],[6,7,2]],
    "labels":["Jan","Feb","Mar"]
};
return {payload:[m]};

只有三个维度,seriesdata , labels

完整代码流

[
    {
        "id": "cdd041df.75e89",
        "type": "tab",
        "label": "流程 9",
        "disabled": false,
        "info": ""
    },
    {
        "id": "99cb6fb7.312ed",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var m={};\nm.labels = [\"January\", \"February\", \"March\", \"April\", \"May\", \"June\", \"July\"];\nm.series = ['Series A', 'Series B', 'Series C'];\nm.data = [\n    [65, 59, 80, 81, 56, 55, 40],\n    [28, 48, 40, 19, 86, 27, 90],\n    [38, 28, 20, 49, 45, 60, 20]\n  ];\nreturn {payload:[m]};",
        "outputs": 1,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "x": 550,
        "y": 500,
        "wires": [
            [
                "1ea08106.2a878f",
                "ff918655.3f4cc8",
                "b22921a0.00d9",
                "df536e27.a17ae"
            ]
        ]
    },
    {
        "id": "1ea08106.2a878f",
        "type": "ui_chart",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "89749fb7.87f01",
        "order": 1,
        "width": 0,
        "height": 0,
        "label": "折线图",
        "chartType": "line",
        "legend": "false",
        "xformat": "auto",
        "interpolate": "linear",
        "nodata": "No Data",
        "dot": false,
        "ymin": "",
        "ymax": "",
        "removeOlder": 1,
        "removeOlderPoints": "",
        "removeOlderUnit": "3600",
        "cutout": 0,
        "useOneColor": false,
        "useUTC": false,
        "colors": [
            "#1f77b4",
            "#aec7e8",
            "#ff7f0e",
            "#2ca02c",
            "#98df8a",
            "#d62728",
            "#ff9896",
            "#9467bd",
            "#c5b0d5"
        ],
        "outputs": 1,
        "useDifferentColor": false,
        "x": 1050,
        "y": 220,
        "wires": [
            []
        ]
    },
    {
        "id": "bdba5475.e63888",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var chart = [{\n    \"series\":[\"A\",\"B\",\"C\"],\n    \"data\":[[{\"x\":1504029632890,\"y\":5},{\"x\":1504029636001,\"y\":4},{\"x\":1504029638656,\"y\":2}],[{\"x\":1504029633514,\"y\":6},{\"x\":1504029636622,\"y\":7},{\"x\":1504029639539,\"y\":6}],[{\"x\":1504029634400,\"y\":7},{\"x\":1504029637959,\"y\":9},{\"x\":1504029640317,\"y\":7}]],\n    \"labels\":[\"\"]\n}];\nmsg.payload = chart;\n\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 340,
        "wires": [
            [
                "1ea08106.2a878f"
            ]
        ]
    },
    {
        "id": "68b4d797.f3f1a8",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 1,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "时间折线1",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "",
        "topicType": "str",
        "x": 230,
        "y": 340,
        "wires": [
            [
                "bdba5475.e63888"
            ]
        ]
    },
    {
        "id": "ff918655.3f4cc8",
        "type": "ui_chart",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "89749fb7.87f01",
        "order": 2,
        "width": 0,
        "height": 0,
        "label": "柱状图",
        "chartType": "bar",
        "legend": "false",
        "xformat": "HH:mm:ss",
        "interpolate": "linear",
        "nodata": "No Data",
        "dot": false,
        "ymin": "",
        "ymax": "",
        "removeOlder": 1,
        "removeOlderPoints": "",
        "removeOlderUnit": "3600",
        "cutout": 0,
        "useOneColor": false,
        "useUTC": false,
        "colors": [
            "#1f77b4",
            "#aec7e8",
            "#ff7f0e",
            "#2ca02c",
            "#98df8a",
            "#d62728",
            "#ff9896",
            "#9467bd",
            "#c5b0d5"
        ],
        "outputs": 1,
        "useDifferentColor": false,
        "x": 1050,
        "y": 320,
        "wires": [
            []
        ]
    },
    {
        "id": "1317cd09.5296f3",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 5,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "一源对多表1",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "",
        "topicType": "str",
        "x": 230,
        "y": 500,
        "wires": [
            [
                "99cb6fb7.312ed"
            ]
        ]
    },
    {
        "id": "c7bafa56.b1d398",
        "type": "random",
        "z": "cdd041df.75e89",
        "name": "",
        "low": "1",
        "high": "10000000",
        "inte": "true",
        "x": 580,
        "y": 700,
        "wires": [
            [
                "1ea08106.2a878f"
            ]
        ]
    },
    {
        "id": "d32f1c0f.31534",
        "type": "inject",
        "z": "cdd041df.75e89",
        "name": "",
        "props": [
            {
                "p": "payload"
            },
            {
                "p": "topic",
                "vt": "str"
            }
        ],
        "repeat": "",
        "crontab": "",
        "once": false,
        "onceDelay": "",
        "topic": "",
        "payload": "",
        "payloadType": "str",
        "x": 230,
        "y": 700,
        "wires": [
            [
                "c7bafa56.b1d398"
            ]
        ]
    },
    {
        "id": "128e400d.24ca1",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var m={};\nm.labels = [10,20,30,40,50,60,70];\nm.series = ['Series A', 'Series B', 'Series C', 'Series D'];\nm.data = [\n    [65, 59, 80, 81, 56, 55, 40],\n    [28, 48, 40, 19, 86, 27, 90],\n    [38, 28, 20, 49, 45, 60, 20],\n    [58, 18, 40, 29, 15, 30, 60]\n  ];\nreturn {payload:[m]};",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 540,
        "wires": [
            [
                "1ea08106.2a878f",
                "ff918655.3f4cc8",
                "b22921a0.00d9",
                "df536e27.a17ae"
            ]
        ]
    },
    {
        "id": "c5b6ec08.69eac",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 6,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "一源对多表2",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "",
        "topicType": "str",
        "x": 230,
        "y": 540,
        "wires": [
            [
                "128e400d.24ca1"
            ]
        ]
    },
    {
        "id": "9bc88c9a.44cdd",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var chart = [{\n    \"series\":[\"A\",\"B\",\"C\"],\n        \"data\":[[{\"x\":1,\"y\":5},{\"x\":2,\"y\":4},{\"x\":3,\"y\":2}],[{\"x\":4,\"y\":6},{\"x\":5,\"y\":7},{\"x\":6,\"y\":6}],[{\"x\":7,\"y\":7},{\"x\":8,\"y\":9},{\"x\":9,\"y\":7}]],\n    \"labels\":[\"\"]\n}];\nmsg.payload = chart;\n\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 380,
        "wires": [
            [
                "1ea08106.2a878f"
            ]
        ]
    },
    {
        "id": "a75ce7f2.9df408",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 2,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "时间折线2",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "",
        "topicType": "str",
        "x": 230,
        "y": 380,
        "wires": [
            [
                "9bc88c9a.44cdd"
            ]
        ]
    },
    {
        "id": "6bcf88af.4c2bb8",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var m = {};\nm.labels = [\"Download\", \"In-Store\", \"Mail-Order\"];\nm.data = [[300, 500, 100]];\nm.series = [\"Sales\"];\nreturn {payload:[m],topic:msg.topic};",
        "outputs": 1,
        "noerr": 0,
        "x": 570,
        "y": 740,
        "wires": [
            [
                "df536e27.a17ae",
                "ff918655.3f4cc8",
                "1ea08106.2a878f",
                "b4dd3939.c1cd18",
                "4ff31492.be2bac",
                "b22921a0.00d9"
            ]
        ]
    },
    {
        "id": "df536e27.a17ae",
        "type": "ui_chart",
        "z": "cdd041df.75e89",
        "name": "饼图",
        "group": "89749fb7.87f01",
        "order": 3,
        "width": 0,
        "height": 0,
        "label": "饼图",
        "chartType": "pie",
        "legend": "true",
        "xformat": "HH:mm:ss",
        "interpolate": "linear",
        "nodata": "",
        "dot": false,
        "ymin": "",
        "ymax": "",
        "removeOlder": 1,
        "removeOlderPoints": "",
        "removeOlderUnit": "3600",
        "cutout": "30",
        "useOneColor": false,
        "useUTC": false,
        "colors": [
            "#1f77b4",
            "#aec7e8",
            "#ff7f0e",
            "#2ca02c",
            "#98df8a",
            "#d62728",
            "#ff9896",
            "#9467bd",
            "#c5b0d5"
        ],
        "outputs": 1,
        "useDifferentColor": false,
        "x": 1050,
        "y": 500,
        "wires": [
            []
        ]
    },
    {
        "id": "7e75f796.5420c8",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 10,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "类目数据图表",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "Pie 4 T",
        "topicType": "str",
        "x": 240,
        "y": 740,
        "wires": [
            [
                "6bcf88af.4c2bb8"
            ]
        ]
    },
    {
        "id": "b4ec542b.e04dc8",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var chart = [{\n    \"series\":[\"A\",\"B\",\"C\"],\n        \"data\":[[{\"x\":1000000,\"y\":5},{\"x\":2000000,\"y\":4},{\"x\":3000000,\"y\":2}],[{\"x\":4000000,\"y\":6},{\"x\":5000000,\"y\":7},{\"x\":6000000,\"y\":6}],[{\"x\":7000000,\"y\":7},{\"x\":8000000,\"y\":9},{\"x\":9000000,\"y\":7}]],\n    \"labels\":[\"\"]\n}];\nmsg.payload = chart;\n\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 420,
        "wires": [
            [
                "1ea08106.2a878f"
            ]
        ]
    },
    {
        "id": "2c3d6dce.1d18b2",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 3,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "时间折线3",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "",
        "topicType": "str",
        "x": 230,
        "y": 420,
        "wires": [
            [
                "b4ec542b.e04dc8"
            ]
        ]
    },
    {
        "id": "287b8f62.2d7a3",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var chart = [{\n    \"series\":[\"A\",\"B\",\"C\"],\n        \"data\":[[{\"x\":1000000000,\"y\":5},{\"x\":2000000000,\"y\":4},{\"x\":3000000000,\"y\":2}],[{\"x\":4000000000,\"y\":6},{\"x\":5000000000,\"y\":7},{\"x\":6000000000,\"y\":6}],[{\"x\":7000000000,\"y\":7},{\"x\":8000000000,\"y\":9},{\"x\":9000000000,\"y\":7}]],\n    \"labels\":[\"\"]\n}];\nmsg.payload = chart;\n\nreturn msg;",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 460,
        "wires": [
            [
                "1ea08106.2a878f"
            ]
        ]
    },
    {
        "id": "e5dfa1c3.4ca2e",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 4,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "时间折线4",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "",
        "topicType": "str",
        "x": 230,
        "y": 460,
        "wires": [
            [
                "287b8f62.2d7a3"
            ]
        ]
    },
    {
        "id": "2a4159e.fe178a6",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var m={\n    \"series\":[\"X\",\"Y\",\"Z\"],\n    \"data\":[[5,6,9],[3,8,5],[6,7,2]],\n    \"labels\":[\"Jan\",\"Feb\",\"Mar\"]\n};\nreturn {payload:[m]};",
        "outputs": 1,
        "noerr": 0,
        "initialize": "",
        "finalize": "",
        "x": 550,
        "y": 660,
        "wires": [
            [
                "1ea08106.2a878f",
                "ff918655.3f4cc8",
                "df536e27.a17ae",
                "b4dd3939.c1cd18",
                "4ff31492.be2bac",
                "b22921a0.00d9"
            ]
        ]
    },
    {
        "id": "90461dd.f6480e",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 9,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "一源对多表5",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "",
        "topicType": "str",
        "x": 230,
        "y": 660,
        "wires": [
            [
                "2a4159e.fe178a6"
            ]
        ]
    },
    {
        "id": "3b31a261.e8763e",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 11,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "类目数据图表2",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "Pie Hole",
        "topicType": "str",
        "x": 240,
        "y": 780,
        "wires": [
            [
                "99f2f157.f465"
            ]
        ]
    },
    {
        "id": "99f2f157.f465",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var m = {};\nm.labels = ['2006', '2007', '2008', '2009', '2010', '2011', '2012'];\nm.data = [[28, 48, 40, 19, 86, 27, 90]];\nm.series = ['Series A'];\nreturn {payload:[m],topic:msg.topic};",
        "outputs": 1,
        "noerr": 0,
        "x": 570,
        "y": 780,
        "wires": [
            [
                "df536e27.a17ae",
                "ff918655.3f4cc8",
                "4ff31492.be2bac",
                "b4dd3939.c1cd18",
                "1ea08106.2a878f",
                "b22921a0.00d9"
            ]
        ]
    },
    {
        "id": "a2f67800.c7fe68",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "topic",
        "func": "var m = [\n    {topic:\"X\", payload:22},\n    {topic:\"Y\", payload:66},\n    {topic:\"Z\", payload:42}\n    ];\nreturn [m];",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 300,
        "wires": [
            [
                "ff918655.3f4cc8",
                "df536e27.a17ae",
                "1ea08106.2a878f",
                "b22921a0.00d9"
            ]
        ]
    },
    {
        "id": "a0477536.e77c18",
        "type": "inject",
        "z": "cdd041df.75e89",
        "name": "",
        "repeat": "",
        "crontab": "",
        "once": false,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 220,
        "y": 300,
        "wires": [
            [
                "a2f67800.c7fe68"
            ]
        ]
    },
    {
        "id": "60ea28c5.555ed8",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "label",
        "func": "var m = [\n    {label:\"A\", payload:22},\n    {label:\"B\", payload:66},\n    {label:\"C\", payload:42},\n    ];\nreturn [m];",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 260,
        "wires": [
            [
                "ff918655.3f4cc8",
                "df536e27.a17ae",
                "1ea08106.2a878f",
                "b22921a0.00d9"
            ]
        ]
    },
    {
        "id": "a4bb52c8.88239",
        "type": "inject",
        "z": "cdd041df.75e89",
        "name": "",
        "repeat": "",
        "crontab": "",
        "once": false,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 220,
        "y": 260,
        "wires": [
            [
                "60ea28c5.555ed8"
            ]
        ]
    },
    {
        "id": "b27dbaec.a6c808",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var m={\n    \"series\":[\"X\",\"Y\",\"Z\"],\n    \"data\":[[5],[3],[6]],\n    \"labels\":[\"Jan\"]\n};\nreturn {payload:[m]};",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 580,
        "wires": [
            [
                "ff918655.3f4cc8",
                "b4dd3939.c1cd18",
                "4ff31492.be2bac",
                "1ea08106.2a878f",
                "b22921a0.00d9",
                "df536e27.a17ae"
            ]
        ]
    },
    {
        "id": "b44ac345.63f59",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 7,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "一源对多表3",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "",
        "topicType": "str",
        "x": 230,
        "y": 580,
        "wires": [
            [
                "b27dbaec.a6c808"
            ]
        ]
    },
    {
        "id": "e7bfc7c3.29bae8",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "",
        "func": "var m={\n    \"series\":[\"X\"],\n    \"data\":[[5,3,6]],\n    \"labels\":[\"Jan\",\"Feb\",\"Mar\"]\n};\nreturn {payload:[m]};",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 620,
        "wires": [
            [
                "ff918655.3f4cc8",
                "1ea08106.2a878f",
                "4ff31492.be2bac",
                "b4dd3939.c1cd18",
                "b22921a0.00d9",
                "df536e27.a17ae"
            ]
        ]
    },
    {
        "id": "9a4f5993.da9a48",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 8,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "一源对多表4",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "",
        "payloadType": "str",
        "topic": "",
        "topicType": "str",
        "x": 230,
        "y": 620,
        "wires": [
            [
                "e7bfc7c3.29bae8"
            ]
        ]
    },
    {
        "id": "b22921a0.00d9",
        "type": "ui_chart",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "4e7edda4.417004",
        "order": 2,
        "width": 0,
        "height": 0,
        "label": "横向柱状图",
        "chartType": "horizontalBar",
        "legend": "false",
        "xformat": "HH:mm:ss",
        "interpolate": "linear",
        "nodata": "",
        "dot": false,
        "ymin": "",
        "ymax": "",
        "removeOlder": 1,
        "removeOlderPoints": "",
        "removeOlderUnit": "3600",
        "cutout": "30",
        "useOneColor": false,
        "useUTC": false,
        "colors": [
            "#1f77b4",
            "#aec7e8",
            "#ff7f0e",
            "#2ca02c",
            "#98df8a",
            "#d62728",
            "#ff9896",
            "#9467bd",
            "#c5b0d5"
        ],
        "outputs": 1,
        "useDifferentColor": false,
        "x": 1070,
        "y": 400,
        "wires": [
            []
        ]
    },
    {
        "id": "b4dd3939.c1cd18",
        "type": "ui_chart",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "4e7edda4.417004",
        "order": 3,
        "width": 0,
        "height": 0,
        "label": "极地区域图",
        "chartType": "polar-area",
        "legend": "false",
        "xformat": "HH:mm:ss",
        "interpolate": "linear",
        "nodata": "",
        "dot": false,
        "ymin": "",
        "ymax": "",
        "removeOlder": 1,
        "removeOlderPoints": "",
        "removeOlderUnit": "3600",
        "cutout": "30",
        "useOneColor": false,
        "useUTC": false,
        "colors": [
            "#1f77b4",
            "#aec7e8",
            "#ff7f0e",
            "#2ca02c",
            "#98df8a",
            "#d62728",
            "#ff9896",
            "#9467bd",
            "#c5b0d5"
        ],
        "outputs": 1,
        "useDifferentColor": false,
        "x": 1070,
        "y": 620,
        "wires": [
            []
        ]
    },
    {
        "id": "4ff31492.be2bac",
        "type": "ui_chart",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "4e7edda4.417004",
        "order": 4,
        "width": 0,
        "height": 0,
        "label": "雷达图",
        "chartType": "radar",
        "legend": "false",
        "xformat": "HH:mm:ss",
        "interpolate": "linear",
        "nodata": "",
        "dot": false,
        "ymin": "",
        "ymax": "",
        "removeOlder": 1,
        "removeOlderPoints": "",
        "removeOlderUnit": "3600",
        "cutout": "30",
        "useOneColor": false,
        "useUTC": false,
        "colors": [
            "#1f77b4",
            "#aec7e8",
            "#ff7f0e",
            "#2ca02c",
            "#98df8a",
            "#d62728",
            "#ff9896",
            "#9467bd",
            "#c5b0d5"
        ],
        "outputs": 1,
        "useDifferentColor": false,
        "x": 1050,
        "y": 740,
        "wires": [
            []
        ]
    },
    {
        "id": "74aa631f.93bbfc",
        "type": "function",
        "z": "cdd041df.75e89",
        "name": "label",
        "func": "var m = [\n    {label:\"A\", payload:22, series:\"X\"},\n    {label:\"B\", payload:66, series:\"X\"},\n    {label:\"C\", payload:42, series:\"X\"},\n    {label:\"A\", payload:33, series:\"Y\"},\n    {label:\"B\", payload:72, series:\"Y\"},\n    {label:\"C\", payload:12, series:\"Y\"},\n    {label:\"A\", payload:44, series:\"Z\"},\n    {label:\"B\", payload:32, series:\"Z\"},\n    {label:\"C\", payload:80, series:\"Z\"}\n    ];\nreturn [m];",
        "outputs": 1,
        "noerr": 0,
        "x": 550,
        "y": 220,
        "wires": [
            [
                "df536e27.a17ae",
                "ff918655.3f4cc8",
                "1ea08106.2a878f",
                "b22921a0.00d9"
            ]
        ]
    },
    {
        "id": "ae70552a.a40dc8",
        "type": "inject",
        "z": "cdd041df.75e89",
        "name": "",
        "repeat": "",
        "crontab": "",
        "once": false,
        "topic": "",
        "payload": "",
        "payloadType": "date",
        "x": 220,
        "y": 220,
        "wires": [
            [
                "74aa631f.93bbfc"
            ]
        ]
    },
    {
        "id": "5fcbc10a.c3693",
        "type": "ui_button",
        "z": "cdd041df.75e89",
        "name": "",
        "group": "ab397e95.29ebe",
        "order": 11,
        "width": 0,
        "height": 0,
        "passthru": false,
        "label": "清空",
        "tooltip": "",
        "color": "",
        "bgcolor": "",
        "icon": "",
        "payload": "[]",
        "payloadType": "json",
        "topic": "",
        "topicType": "str",
        "x": 530,
        "y": 180,
        "wires": [
            [
                "4ff31492.be2bac",
                "b4dd3939.c1cd18",
                "df536e27.a17ae",
                "b22921a0.00d9",
                "ff918655.3f4cc8",
                "1ea08106.2a878f"
            ]
        ]
    },
    {
        "id": "89749fb7.87f01",
        "type": "ui_group",
        "name": "Charts",
        "tab": "d7901f40.2659d",
        "order": 2,
        "disp": false,
        "width": "6"
    },
    {
        "id": "ab397e95.29ebe",
        "type": "ui_group",
        "name": "Inputs",
        "tab": "d7901f40.2659d",
        "order": 1,
        "disp": false,
        "width": "6"
    },
    {
        "id": "4e7edda4.417004",
        "type": "ui_group",
        "name": "Group 3",
        "tab": "d7901f40.2659d",
        "order": 3,
        "disp": false,
        "width": "6"
    },
    {
        "id": "d7901f40.2659d",
        "type": "ui_tab",
        "name": "Charts",
        "icon": "dashboard",
        "order": 2
    }
]

具体使用方法,可以直接复制流的json数据 导入到工作台。

粘贴进去,点导入即可。缺少的节点需要手动安装。

拿我格子衫来 CSDN认证博客专家 拿我格子衫来 范马勇次郎 琦玉君
积土成山,风雨兴焉;积水成渊,蛟龙生焉;积善成德,而神明自得,圣心备焉。故不积跬步,无以至千里;不积小流,无以成江海。骐骥一跃,不能十步;驽马十驾,功在不舍。锲而舍之,朽木不折;锲而不舍,金石可镂。蚓无爪牙之利,筋骨之强,上食埃土,下饮黄泉,用心一也。蟹六跪而二螯,非蛇鳝之穴无可寄托者,用心躁也。
<p> <span style="color:#313d54;font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;font-size:16px;background-color:#ffffff;">Node-RED工业网物联网的重要组成部分,我最开始接触Node-RED,也算是一个偶然的机会吧,上班后领导安排我的第一个任务就是调研一下Node-RED,我之后上网查了一下,那个时候网上相对于Node-RED的资料也比较少,只知道它是IBM公司的一个开源项目。直到最近,发现许多大公司的产品都支持Node-RED,比如西门子公司的IoT2000,研华公司的WISE PaaS 网关,美国OPTO 22等设备中都安装了Node-RED,表明它在工业物联网和控制中已经广泛应用了。</span> </p> <p> <img src="https://img-bss.csdnimg.cn/202010200935441926.png" alt="" width="1316" height="524" /> </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> 那么工业物联网为什么要用它?它又处于工业物联网那个层次?它具有哪些特性?它帮助物联网解决了什么问题?为什么说它是柔性动态可重构的解决方案呢? </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;">   </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;">   </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> 本门课程,老师将带领你从Node-RED的发展,工业物联网定位开始讲解,并带领着大家进行手把手安装Node-RED,实际操作演练Node-RED,并搭建一个物联网小平台,给大家带来更好的学习效果。 </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> <img src="https://img-bss.csdnimg.cn/202010200936289051.png" alt="" width="1841" height="948" /> </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> <img src="https://img-bss.csdnimg.cn/202010200936561564.png" alt="" width="1920" height="977" /> </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;">   </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;">   </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> 为了能够让小伙伴们快速了解本门课程的结构,本门课程从以下几个方面展开: </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> Node-RED入门 </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> Node-RED安装与配置 </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> Node-RED教学实战 </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> Node-RED的优势与不足 </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> Node-RED能为我们带来什么 </p> <p style="font-family:'Helvetica Neue', Helvetica, 'Hiragino Sans GB', Arial, sans-serif;color:#313d54;font-size:16px;background-color:#ffffff;"> Node-RED总结与展望 </p>
相关推荐
©️2020 CSDN 皮肤主题: 编程工作室 设计师:CSDN官方博客 返回首页
